Admiralty Brass Tubes (CuZn28Sn1)
A tin-bearing brass for cooling-water and seawater service.
Applications
- Heat exchangers
- Condensers
- Marine components
- Ship building
Benefits
- Excellent corrosion resistance in seawater
- High strength & durability
Copper Alloy TubesAdmiralty Brass & Aluminium Brass Tubes
Seamless Admiralty brass and aluminium brass tubes for heat exchangers, condensers, marine & shipbuilding, chemical & process industries and architectural uses.
Overview
High-performance copper alloy tubes
BK Industries manufactures Admiralty brass tubes (CuZn28Sn1) and aluminium brass tubes at our plant in Palghar, Maharashtra, near Mumbai, for marine and industrial buyers across India.
For applications where standard brass is not enough, BK Industries manufactures seamless copper alloy tubes — Admiralty brass (CuZn28Sn1) for heat exchangers, condensers and marine service, and aluminium brass for marine, chemical & process and architectural applications.
Both are made in our 1/4" to 4" OD size range with 0.25–5 mm wall, drawn, annealed, straightened and tested in-house. For 70/30 brass, see Brass Tubes.
- Admiralty brass (CuZn28Sn1) — excellent corrosion resistance in seawater
- Aluminium brass — superior corrosion resistance, good high-temperature strength
- Seamless, high-precision tubes
- Sizes 1/4" to 4" OD (6.35–101.6 mm), 0.25–5 mm wall
- Soft (annealed), half-hard and hard tempers — as per client requirements
- Straight lengths up to 18 ft (approx. 5.5 m), or cut-to-length pieces
- In-house hardness testing and hydrostatic pressure testing
Our Copper Alloy Range · High performance. Superior reliability.
Admiralty brass & aluminium brass tubes

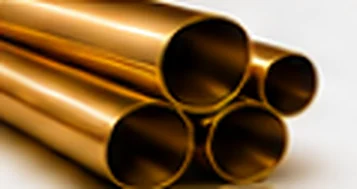

Aluminium Brass Tubes
An aluminium-bearing copper alloy for demanding marine and process environments.
Applications
- Marine components
- Chemical & process industries
- Architectural
Benefits
- Superior corrosion resistance
- Good high-temperature strength
Applications
Where our copper alloy tubes are used
Heat exchangersAdmiralty brass tubes for shell-and-tube heat exchangers and coolers.
CondensersCondenser tubes for cooling-water service.
Marine & shipbuildingMarine components and shipbuilding — Admiralty and aluminium brass for seawater service.
Chemical & process industriesAluminium brass tubes for chemical and process plant equipment.
ArchitecturalAluminium brass tubes for architectural applications.
Custom requirementsAlloy, size, temper and length matched to your specification.
Specifications
Copper Alloy Tubes — technical specifications
All specifications confirmed by BK Industries. Don’t see your size? Special sizes can be discussed.
| Parameter | Specification |
|---|---|
| Alloys | Admiralty brass (CuZn28Sn1); aluminium brassConfirmed |
| Profile / shape | RoundConfirmed |
| Outside diameter (OD) – round | 1/4" to 4" (6.35 mm to 101.6 mm)Confirmed |
| Wall thickness | 0.25 mm to 5 mmConfirmed |
| Temper | Soft (annealed), half-hard and hard — as per client requirementsConfirmed |
| Length | Straight lengths up to 18 ft (approx. 5.5 m); longer lengths on special request; cut-to-length pieces availableConfirmed |
| Standards | ASTM B111, IS 1545, EN 12451 (condenser and heat-exchanger tubes)Confirmed |
| Testing | Hardness, dimensional inspection, hydrostatic pressure testConfirmed |
All specifications above are confirmed by BK Industries. Special sizes and requirements can be discussed against your enquiry.
Common sizes enquired (indicative OD × wall combinations within our range)
12.7 × 1.0 mm (1/2")15.88 × 1.0 mm (5/8")19.05 × 1.24 mm (3/4")22.22 × 1.24 mm (7/8")25.4 × 1.24 mm (1")31.75 × 1.6 mm (1-1/4")
See the full size chart →Buyer FAQs: MOQ, tempers, lengths →
Request a quote for copper alloy tubes
Mention OD, wall thickness, temper, length/coil size, standard and quantity for the fastest response.
